Atlas Thermal Imaging Binocular

N-Vision Atlas Thermal Imaging Binocular.

ATLAS is the ?rst commercially available thermal binocular based on 12-micron technology. Lightweight and fully waterproof, the N-Vision Optics ATLAS Thermal Binocular is extremely robust and capable. Constructed with durable composite plastics, it is signi?cantly smaller in size and weight in comparison to other thermal binoculars on the market.

Specifications:

Detector resolution: 640x 480

Detector Pitch: 12µm

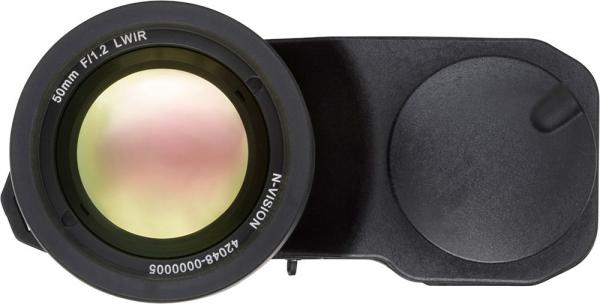

Lens: 50mm, F 1.2 Germanium Lens

Spectral Response: 7.5 - 13.5 µm

Refresh Rate: 9Hz or 60Hz

Image capture: internal memory

Viewing angle: 9 x 7 degrees

Detection range: 2250m

Waterproof rating: IP67

Batteries: CR123 (3)

Video output: USB and analog

Start-up time: less than 4 seconds

Material: Amorphous silicon microbolometer

Sensor resolution: 640 x 480, 12 micron

Weight: 575g / 20.2 oz

Dimensions: 14.8L x 12.5W x 6H
